GENERAL INFORMATION

​

• Types:

  • Production Line for Gypsumboar Profiles​

  • Production Line for Corner Bead Profiles

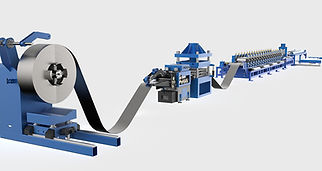

  • Production line for Highway Guardrails Profiles

  • Production line for Closed Square Profiles

  • Production Line for as per customer drawings

​

• Production Speed: 20 m/min - 120m/min

• Material: Galvanized, Stainless Steel

• Material Thickness: 0.2mm - 5mm

​

DE-COILER

​

• Capacity: 1t - 15t

• Motorized or non-motorized

• Double head as optional

​

ROLLFORMING MACHINE

​

• Maximum width between stands: 90 - 500 mm

• Shaft diameter: 40 - 60 mm

• Number of forming stations: depends on profile type (2 - 30 stations)

• One-piece table from steel welded construction, machined and painted

• Steel roller shafts, entirely hardened and ground

• Shafts supported on both ends

• Adjustable stand (operator side) and fixed stand (drive side)

• Upper roller shafts adjustable according to the thickness to be worked, with graded Vernier scale for setting.

• Rollers for forming and calibration made of S 4140 alloy steel precisely machined and heat treated at 55-57 HRC and re-machined after hardening for long lifetime

​

CUTTING UNIT

​

• Types: Flying shear and stop type

• Flying shear carriage on slides and rail structured for translational motion driven by servomotor and gearbox

• Hydraulic system

• Cutting dies from alloyed cold work tool steel hardened to 60-62 HRC

​

AUTOMATION SYSTEM

​

• SIEMENS, EATON and MITSUBISHI Brands

• Data input entry product length and quantity

• Infinitely adjustment of production speed

• Synchronize operation of machines on the line

• There are emergency stop buttons as needed. (min. 3 buttons)
